Suburban Nautilus Black or White Door - Instant - Gas Hot Water System - Supply and Fitment

EXTRA COST WILL BE INCURRED IF A GAS FITTER IS NEEDED FOR CERTIFICATION

Description

The Nautilus fits the same size cutout as their standard 22.6L tank systems and is an easy slide-in upgrade. The tankless system means no recovery time, greater energy efficiency and less maintenance than its storage tank counterparts.

The 60,000 BTU two-stage modulating combustion system instantly adjusts the gas input to provide a consistent output temperature, while conserving energy. The first stage uses just 2 burners, saving energy while the second stage uses 5 burners allowing for maximum temperature gain even with higher flow rates.

When used with the Digital Control Center (available separately) you are able to easily adjust the output temperature between 35-50 degrees Celsius.

Features

• Two-stage self modulating combustion system which provides a consistent output temperature.
• Has built-in freeze protection.
• Continuous, Instant Hot Water.
• Selectable water temperature from 35 to 50 degrees celsius /
• Suits common Suburban cutout.
• Energy efficient.
• 2 Years Warranty.
• Uses LP Gas.
• Dimensions in mm: Width 317 x 318 Height x 465 length, includes inlet & discharge water lines.
• 60,0000 BTU two-stage heating.
• Minimum starting water flow: 1.9L/min.
• Temperature rise at 5.7L/min flow: 38 degrees celsius.

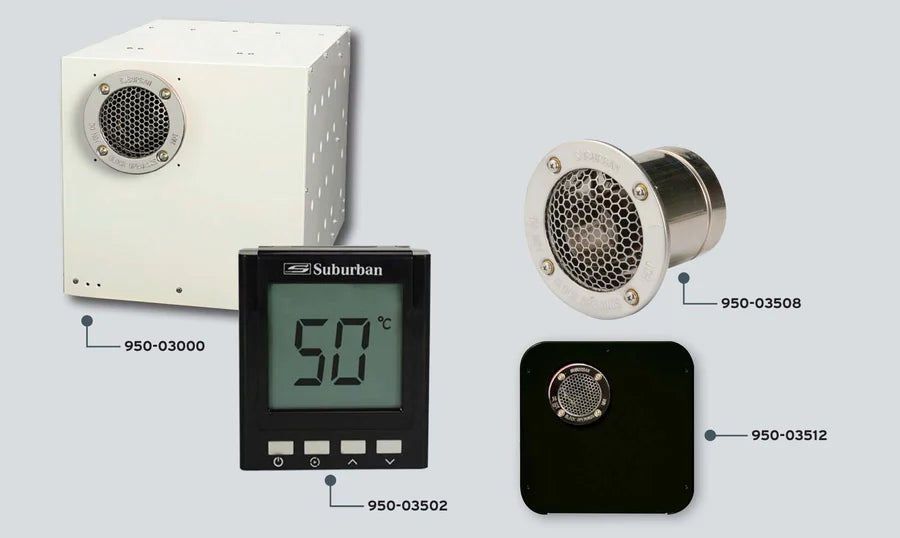

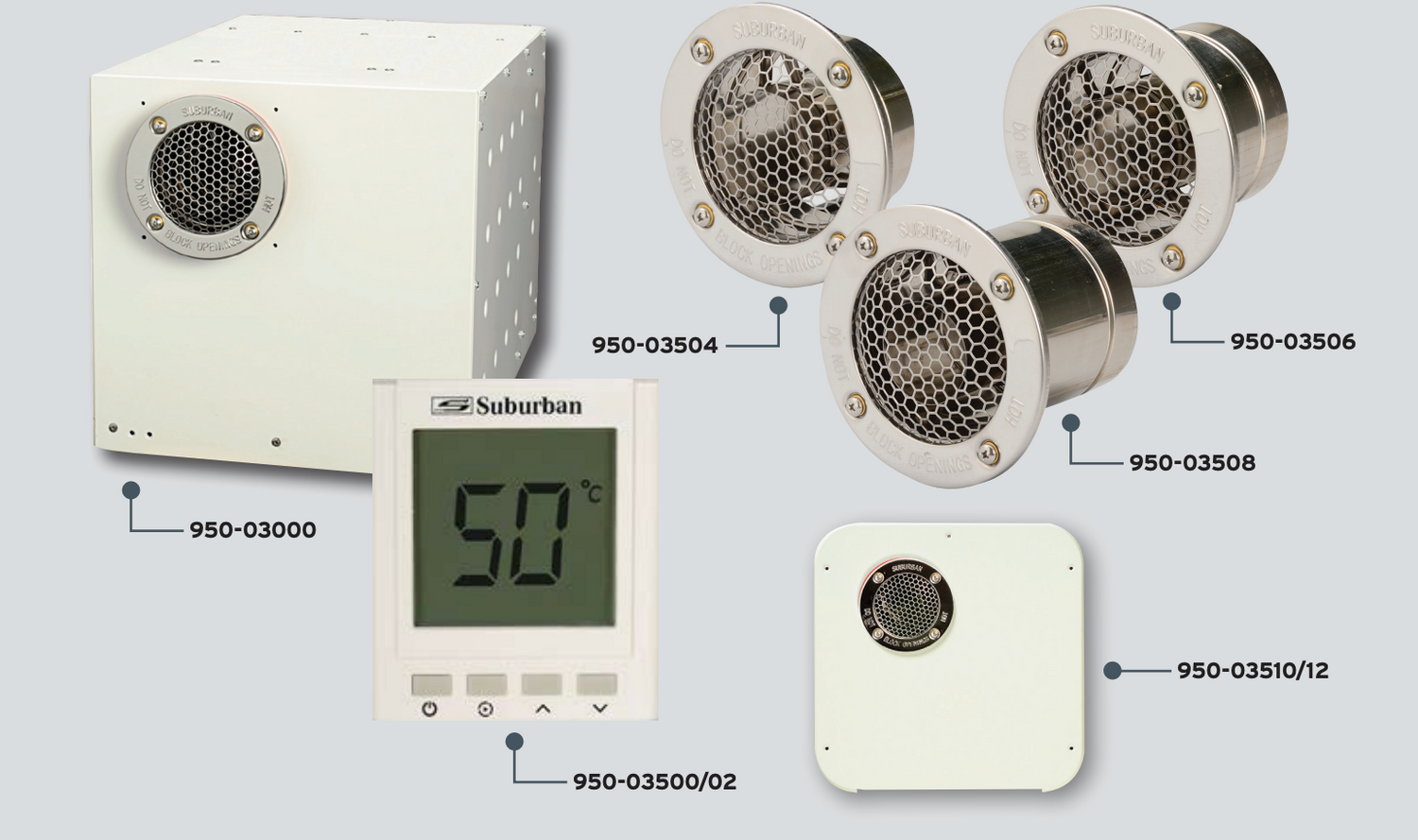

INCLUDED IN PACKAGE

• This package includes your door, either in Black or White
• We will also need to know the wall thickness due to having to order the right air vent that comes in 3 sizes- 0-2.5cm/2.5-5cm/5-7.5cm
• There is a Control panel that also comes in the choice of Black or White
