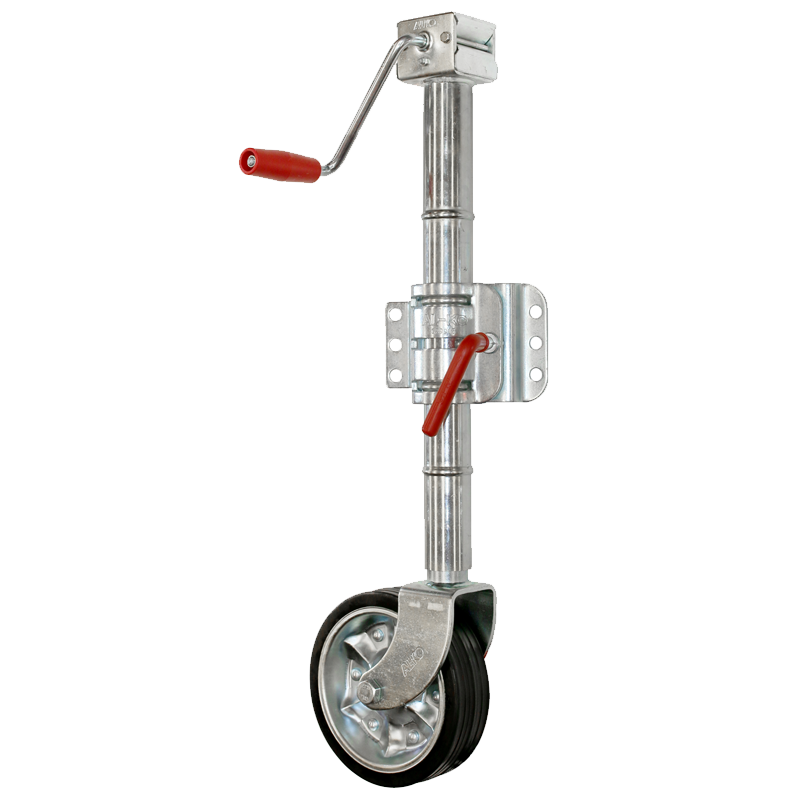

AL-KO Premium Side Wind Jockey Wheel - 200mm Solid Tyre with Clamp - LIMITED STOCK

ONLY 1 LEFT AT THIS PRICE - ONCE STOCK CLEARS, THERE WILL BE NO RESTOCK

Description

The side wind design allows unrestricted movement where conventional top wind units are obstructed by items mounted on your drawbar. The overall height of this jockey wheel with 4 clamping positions makes it suitable for a huge range of applications. The integrated gearbox provides effortless winding with a static capacity of up to 400 kg.

The Alko 628500 is an extra tall jockey wheel with a 200mm (8 inch) solid tyre. The zinc-coated 48mm-diameter shaft has a lift range of 320mm to 841mm between the ground and centre of drawbar.

Features

• Side winding gear driven operation
• Huge height range
• Large heavy duty wheel for easy manoeuvring on soft or uneven surfaces
• Included Alko Extra Wide Clamp - this can be bolted or welded on. (Bolts not included)
• Zinc-coated for lasting protection
• 1 year warranty.

Specifications

• Static Capacity: 400 kg
• Wheel Size: 200 mm (8 inch) solid tyre
• Weight: 9.1 kg
• Max Lift / extension: 266 mm
• Minimum Ground Clearance (G1): 320 mm (from centre of drawbar)
• Maximum Ground Clearance: 841 mm (from centre of drawbar)
• Overall Height Open: 1037 mm
• Overall Height Closed: 771 mm
• Finish: Zinc plated
• Clamp: extra wide weld-on / bolt-on
• Fixing Points: 4 x multiple height positions
