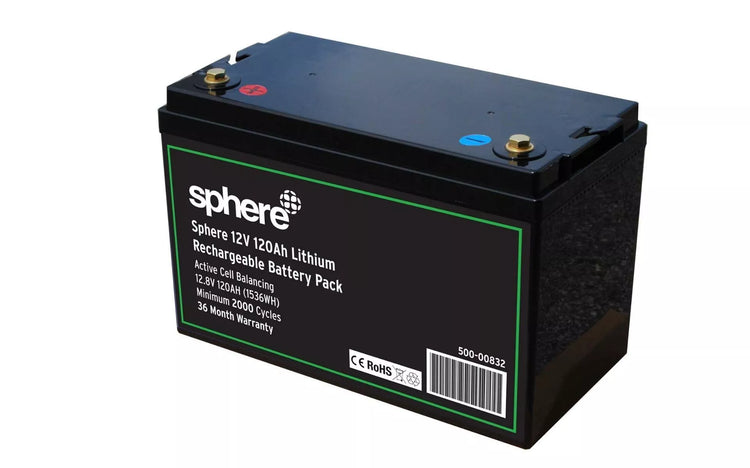

Sphere 12V 120AH Lithium Rechargeable Battery

Regular price
$1,115.00
Regular price
$1,342.00
Sale price
$1,115.00
  • Hurry, only 1 item left in stock!

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Product Details

Local pick up only

REDUCED PRICE - 1 ONLY AVAILABLE AT THIS PRICE

Sphere lithium batteries are the future of battery storage. Lithium batteries are much lighter than traditional lead acid batteries and deliver unrivalled cycle life, more than 4 times more cycles compared to lead acid batteries.

Perfect for use in caravans, marine, camping and home storage applications. The batteries are fully sealed and feature a built-in battery management system for safety.

If you are replacing an existing deep cycle lead acid battery you can continue to use your same battery charging system and the built-in battery management system will do the rest for you. You will also notice that lithium batteries charge more efficiently than lead acid batteries so the recovery will me much quicker.

Sphere lithium battery use Active cell balancing technology to balance the internal battery cells not only whilst charging but also whilst discharging. This assist’s in getting the battery as close to 100% charge levels as possible.

Features:

  • 120AH Lithium Iron
  • 2000+Cycles
  • Built in advanced BMS with Dynamic cell balancing
  • Lightweight
  • Can be connected in series or parallel
  • Equivalent to 3 or 4 150AH deep cycle lead acid batteries
  • 3 Year Warranty
  • Note: This battery can’t be used to start motor vehicles

 Specifications:

  • Dimensions365x185x245mm
  • ChemicalLithium Iron LiFePo4
  • Product Weight 17.9kgs
  • Operating Temperature Range-20°C ~ +60°C
  • Voltage12.8VDC
  • Amperage120AH
  • Max Discharge Rates1C
  • Max Continuous Current100A
  • Max 10 Second Pulse200A
  • Min Charge Current2A
  • Nominal Charge Current30A
  • Max Charge Current100A
  • Max Charge Voltage15.2V
  • Cell Balancing5AH Nominal (8AH Peak) charge & discharge
  • Cycles @ 100% DOD2000 Cycles
  • Cycles@ 80% DOD3000 Cycles
  • Cycles@ 50% DOD3500 Cycles
  • Cycles@ 30% DOD8000 Cycles
  • Low Voltage cut out10VDC
  • Maximum In-series voltage30.4V
  • Terminal: T8
