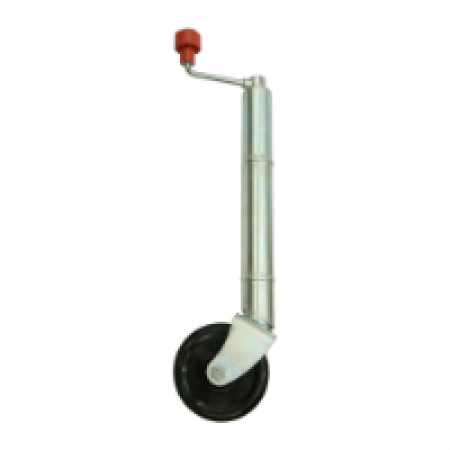

ALKO Premium 150mm Jockey Wheel - Standard Height

Description

Alko's Premium range of jockey wheels are made from high quality materials rated with a static capacity of 400kg or 500kg when used with the Alko Extra Wide Clamp. With standard height or extra tall models available and a complete range of wheel sizes from 150mm to 250mm.

The Alko 626600BX (previously 626100) is a standard height jockey wheel with a 150mm (6 inch) solid tyre. The zinc coated 48mm diameter shaft has 2 clamping positions providing a lift range of 202mm to 649mm between the ground and centre of drawbar. This unit is ideal for caravans or trailers which do not require much movement once detached from tow vehicle. If movement is required or using on soft or uneven ground then larger diameter jockey wheels are recommended.

Features

• Zinc coated for lasting protection
• 1 year warranty.

Specifications

• Static Capacity: 400 kg
• Wheel Size: 150 mm (6 inch) solid tyre
• Weight: 5.5 kg
• Max Lift / extension: 265 mm
• Minimum Ground Clearance (G1): 202 mm (from centre of drawbar)
• Maximum Ground Clearance (G2): 649 mm (from centre of drawbar)
• Overall Shaft Height Open: 772 mm
• Overall Shaft Height Closed: 507 mm
• Finish: Zinc Plated
