Logi Tempering Valve - LIMITED STOCK

ONLY 3 LEFT IN STOCK AT THIS PRICE - ONCE STOCK CLEARS THERE WILL BE NO RESTOCK

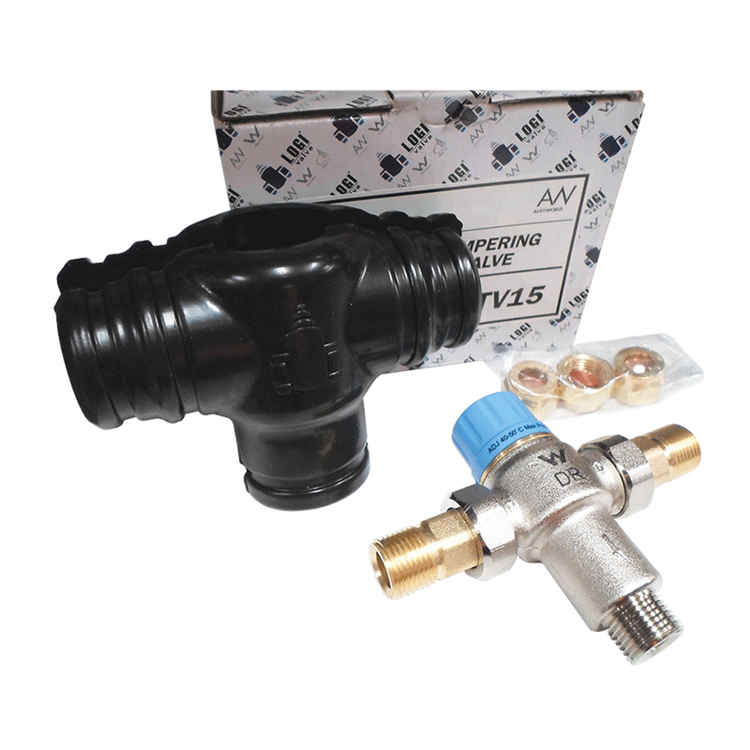

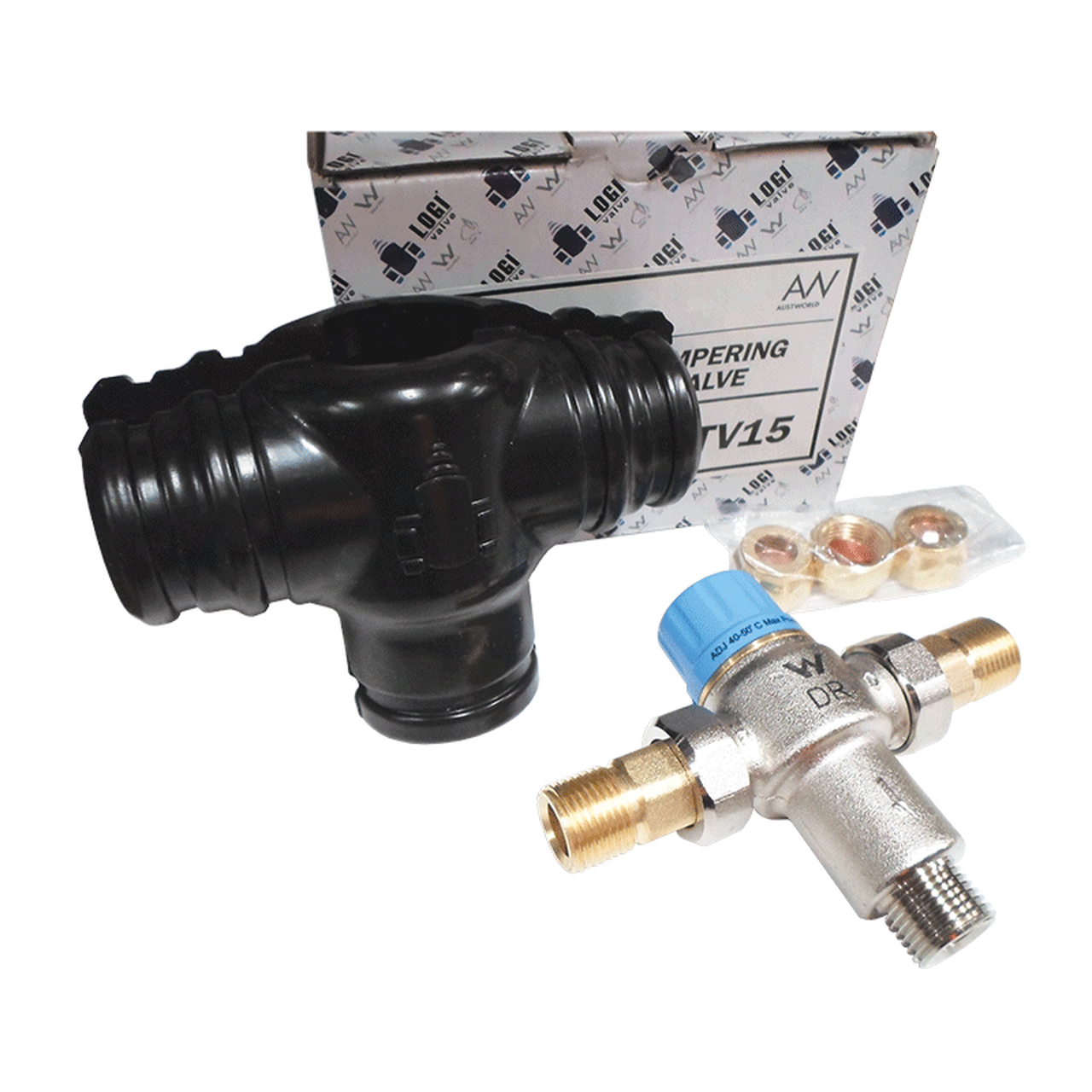

TV15 1/2 Male Tempering Valve are used in the process of mixing hot and cold water to deliver tempered water at a continuous temperature throughout a hot water system

The valve is appropriate for tempering the hot water to supply outlets used for personal hygiene purposes where the outlet temperature must not exceed the maximum of 50 Degrees

Features:

- Blends hot and cold water to create a mixed flow that won't scald or chill

- Cold Water Supply Temperature: 5ºC – 30ºC

- Hot Water Supply Temperature: 60ºC – 90ºC

- Set Temperature: 50ºC standard (must be commissioned onsite by the installer)

- Accuracy of Outlet Temperature: +/- 3ºC (as per AS4032.2)

- Maximum Working Pressure (Static): 1400Kpa

- Maximum Working Pressure (Dynamic): 500Kpa

- Minimum Flow Rate: 3.6L/min under outlet pressure 10Kpa
