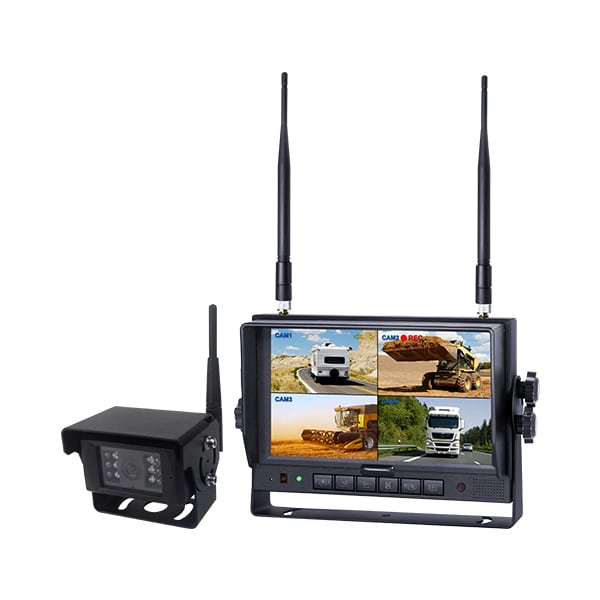

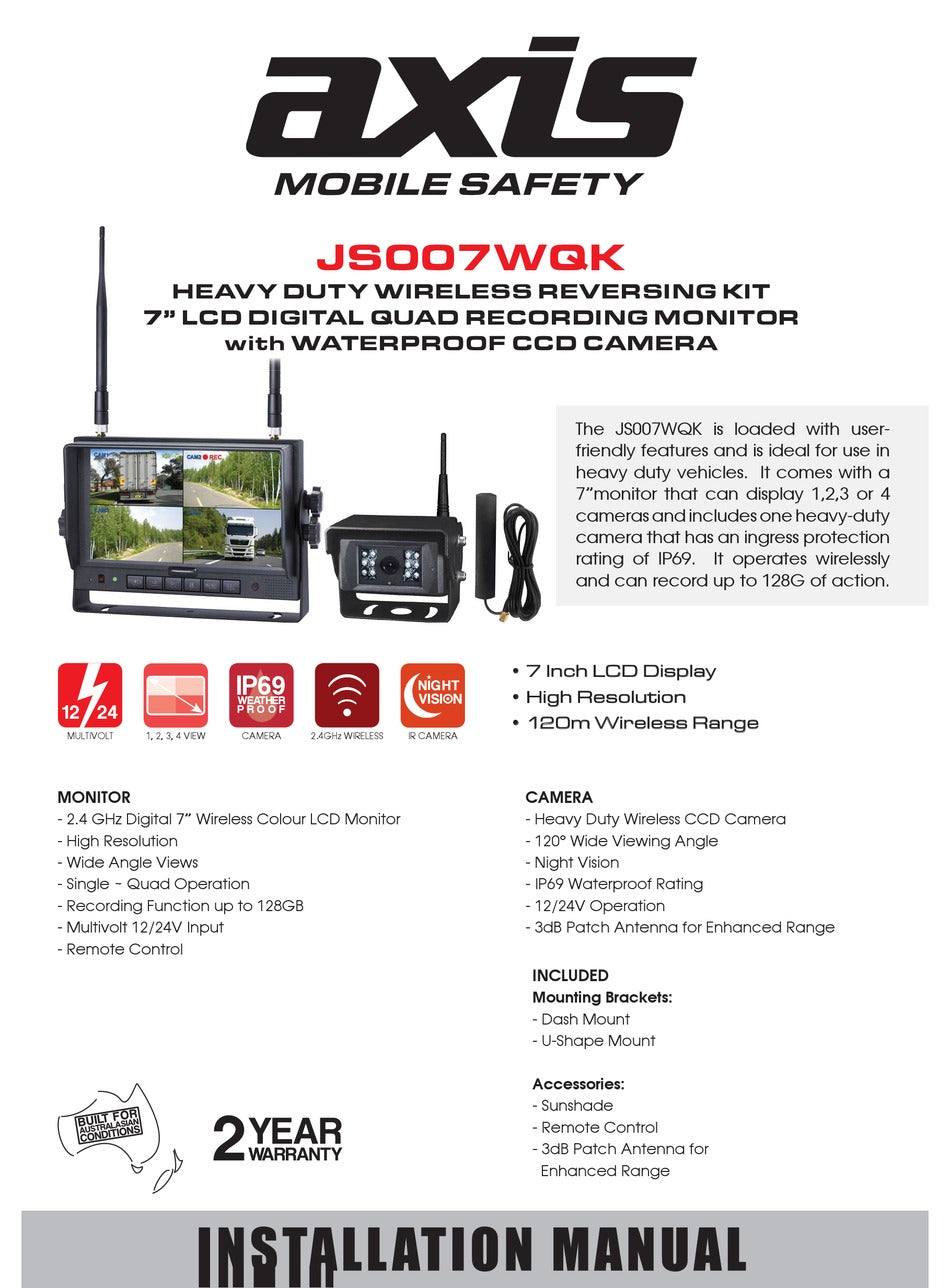

Axis 7” Wireless Quad View Reversing Camera Kit (Up to 4 Cameras)

Regular price
$877.00
Sale price
$877.00

    Customer Reviews

    No reviews yet
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

    Product Details

    MONITOR
    – LCD Size: 178mm (7”)
    – Resolution: 800 x 3 (RGB) x 480
    – Contrast: 500:1
    – Brightness: 400 cd/m²
    – Viewing Angle: U: 50 / D: 70, R/L: 70
    – Dot Pitch: 0.0642(W) x 0.1790(H)
    – Aspect Ratio: 16:9
    – Image Orientation: Normal / Mirror / Flip / Mirror Flip
    – Inputs: 4 Channels
    – Operating Frequency: 2.4 ~ 2.4835 GHz
    – Receiving Sensitivity: -89 dBm
    – Pairing to Camera/s: Auto when camera activated
    – Compression Format: MPEG4
    – Transmit Output Power: 17 dBm
    – Modulation: 2.4G FSK/GFSK
    – Time Delay: 120ms
    – Transmitting Range: 120 Metres (approx)
    – Recording Media: Micro-SD / TF Card (not supplied)
    – Max SD Card Capacity: 128GB
    – Cycled Recording: 1 ~ 4 channels
    – Signal System: PAL / NTSC
    – Power Supply: DC 10-32V
    – Power Consumption: 6W Max
    – On-board Loudspeaker: 1.5W ƺ
    – Operating Temperature: -20~+70°C

    CAMERA
    – Image Device: 1/3” CCD PC1089 Sensor
    – Viewing Angle: 120°
    – Signal System: PAL
    – Effective Pixels: 728 x 488
    – Sensing Area: 4.6228mm x 3.6112mm
    – Scanning System: 2:1 Interlace
    – Sync System: Internal
    – Horizontal Sync Frequency: 15.625 KHz
    – Vertical Sync Frequency: 50 Hz
    – S/N Radio: Better than 48dB
    – White Balance: Auto
    – Electronic Shutter: 1/50 (PAL) ~1/100,000 seconds
    – Operating Frequency: 2.4 ~ 2.4835 GHz
    – Receiving Sensitivity: -89 dBm
    – Line of Sight Range: 120 metres
    – Compression Format: MPEG4
    – Frame Rate: 25f/s
    – Transmit Output Power: 17 dBm
    – RF Bit Rate: 4Mbps
    – Minimum Illumination: 0 Lux (12 IR LEDs)
    – Night Vision Distance: 10m
    – Audio: Yes
    – Ingress Protection: IP69
    – Power Supply: DC 8-36V

    INCLUDED
    Mounting Brackets:
    – Dash Mount
    – U-Shape Mount

    Accessories:
    – Sunshade
    – Remote Control
    – 3dB Patch Antenna forEnhanced Range
