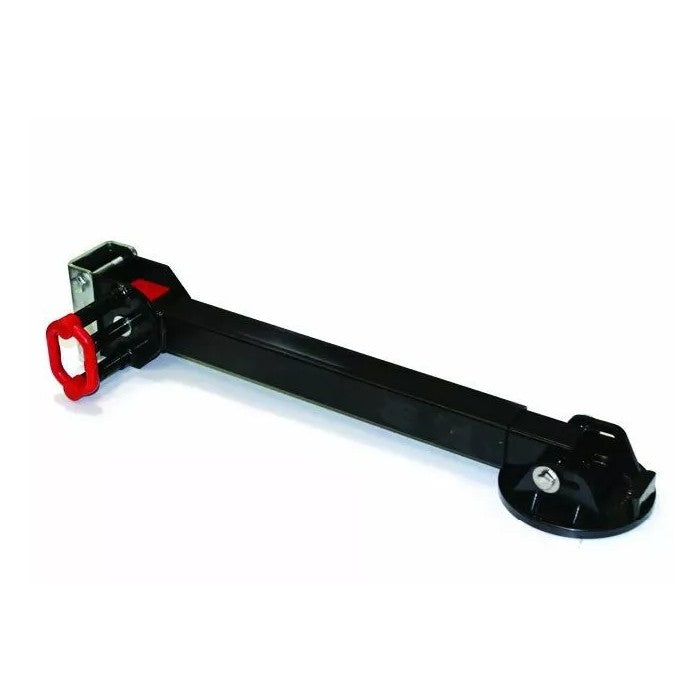

ALKO Black Drop Down Stabiliser Leg (Corner Steady) 590mm - SPECIAL ORDER ONLY

ALKO's Black Drop Down Stabiliser Legs are a modern evolution of the classic caravan corner steady, offering enhanced stability and ease of use for caravan and trailer owners. Designed to provide robust support when your vehicle is stationary, these legs improve upon traditional angled stabilisers by allowing for a vertical position, ensuring greater rigidity.

Constructed for durability, these stabiliser legs have a black E-Coating, a 19mm hex drive and a Big Foot base plate, which together contribute to their long-lasting performance. The legs can be adjusted to any angle and securely locked in place using a quick-release red handle. For the final adjustment, a winder (not included) or a compatible socket can be used, making the setup straightforward and user-friendly.

One of the key features of these stabiliser legs is their ability to rotate through a full 180 degrees, allowing for flexible mounting options on either the left or right side of your caravan. Each stabiliser is supplied with a mounting bracket, typically welded to the chassis, and the stabiliser is then bolted to this bracket with the included bolts.

The minimum height of the stabiliser legs when set vertically is 420mm, but they can still function effectively at any height when angled, similar to traditional wind-down legs. When fully extended in the vertical position, they reach up to 590mm, and this height can be further increased with the use of removable blocks if needed.

Please note that the price listed is for one corner stabiliser and the mounting bracket. The HEX winder handle is not included in the package.

Modern drop-down design for improved stabilisation when parked

Can be positioned vertically for greater rigidity than traditional angled steadies

Quick-release handle lets you lock the leg at the required angle

180-degree rotation suits left- or right-hand mounting

19 mm hex drive allows easy winding with a suitable socket or winder

Big Foot base plate helps spread the load on softer ground

Durable black E-coat finish

1 year warranty.

Black E-Coat Finish

Height Fully Extended: 590 mm (Big Foot Included)

Minimum Vertical Height: 420 mm (Big Foot Included)

Stowed Height: 125 mm

The mounting bracket for welding is 110 mm x 75 mm. If bolting to the frame the bracket is 100 mm x 65 mm with 80 mm hole centres.

The internal dimensions of the bracket are L 110 mm x W 65 mm

Shipping Weight: 5.00 Kgs.

Shipping Dimensions: 16 cm x 46 cm x 64 cm.
