ALKO Premium 200mm Jockey Wheel - Extra Height with No Clamp -

Description

Alko's Premium range of jockey wheels are made from high quality materials rated with a static capacity of 400 kg or 500 kg when used with the Alko Extra Wide Clamp. With standard height or extra tall models available and a complete range of wheel sizes from 150mm to 250mm. This style of jockey wheel comes with or without clamps and is suitable for most caravan and trailer applications.

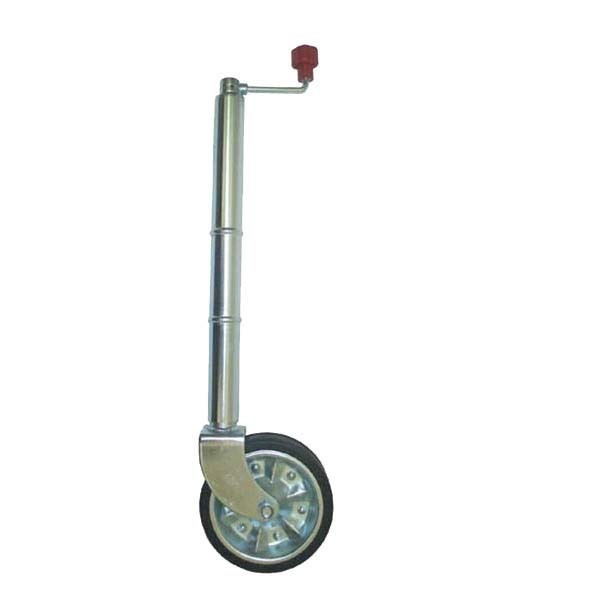

The Alko 628325 is an extra tall jockey wheel with a 200mm (8 inch) solid tyre. The zinc coated 48mm diameter shaft has 3 clamping positions providing a lift range of 370mm to 767mm between the ground and centre of drawbar. This unit is ideal for caravans or off road trailers which require extra height to level or to overcome parking on a slope.

This unit does not include a clamp. It is suitable for use with the standard Alko clamp, or if you wish to increase the rating to 500 kg the extra wide clamp is available. Both are listed as a related product below.

Features

• Large heavy duty wheel for easy manoeuvring on soft or uneven surfaces
• Extra height great for off-road caravans and camper trailers
• Zinc-coated for lasting protection
• 1 year warranty.

Specifications

• Static Capacity: 400 kg
• Wheel Size: 200 mm (8 inch) solid tyre
• Weight: 7 kg
• Max Lift / Extension: 265 mm
• Minimum Ground Clearance (G1): 370 mm (from centre of drawbar)
• Maximum Ground Clearance (G2): 767 mm (from centre of drawbar)
• Overall Height Open: 995 mm
• Overall Height Closed: 730 mm
• Finish: Zinc plated
• Clamp: None supplied - see related items below for standard or wide clamps
