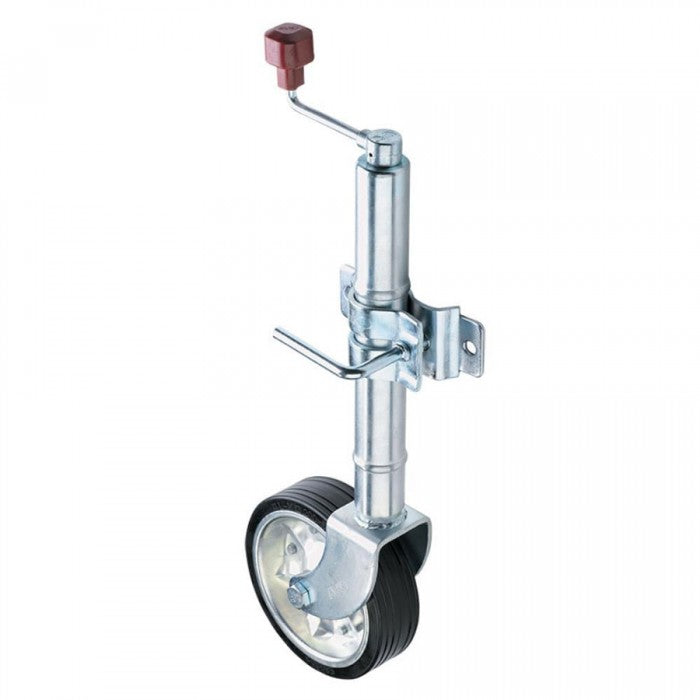

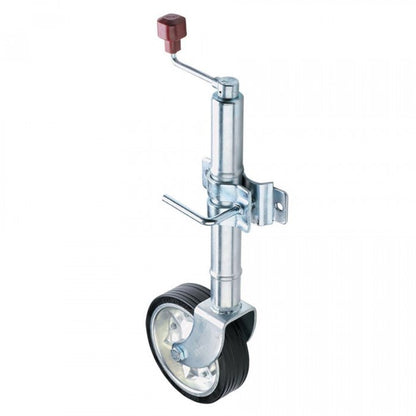

ALKO Premium 200mm Jockey Wheel - Standard Height with Clamp

Description

Alko's Premium range of jockeys wheels are made from high quality materials rated with a static capacity of 400 kg or 500 kg when used with the Alko Extra Wide Clamp. With standard height or extra tall models available and a complete range of wheel sizes from 150 mm to 250 mm. This style of jockey wheel comes with or without clamps and is suitable for most caravan and trailer applications.

The Alko 628100 is a standard height jockey wheel with a 200mm (8") solid tyre. The zinc coated 48mm diameter shaft has 3 clamping positions providing a lift range of 262 mm to 697 mm between the ground and centre of drawbar. This unit is ideal for caravans or trailers which require movement on soft or uneven ground once detached from tow vehicle.

This unit includes the standard Alko clamp, however if you wish to increase the rating to 500 kg the extra wide clamp is available as a related product below.

Features

• Large heavy duty wheel for easy manoeuvring on soft or uneven surfaces
• Included Alko Standard Clamp - this can be bolted or welded on. (Bolts not included)
• Zinc coated for lasting protection
• 1 year warranty.

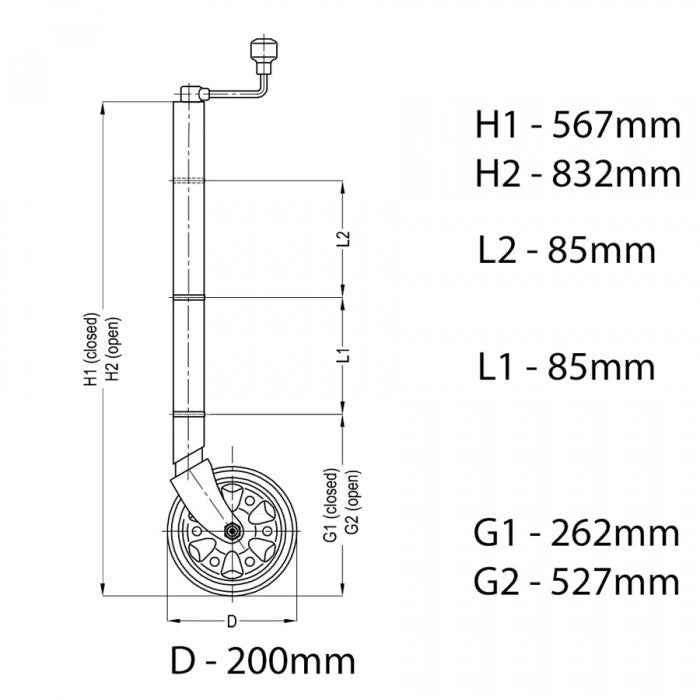

Specifications

• Static Capacity: 400 kg
• Wheel Size: 200 mm (8") solid tyre
• Weight: 7 kg
• Max Lift / extension: 265 mm
• Minimum Ground Clearance(G1): 262 mm (from centre of drawbar)
• Maximum Ground Clearance(G2): 697 mm (from centre of drawbar)
• Overall Shaft Height Open: 832 mm
• Overall Shaft Height Closed: 567 mm
• Finish: Zinc plated
• Clamp: Standard bolt/weld on (bolts not included)
