The John Guest Speedfit RV Range has been specifically designed to meet Australian Standards and to be WaterMark compliant. The benefits of this range is its increased maximum working temperature and pressure . JG Speedfit tube fittings are warranted to achieve 80°C at 1000 kPa.

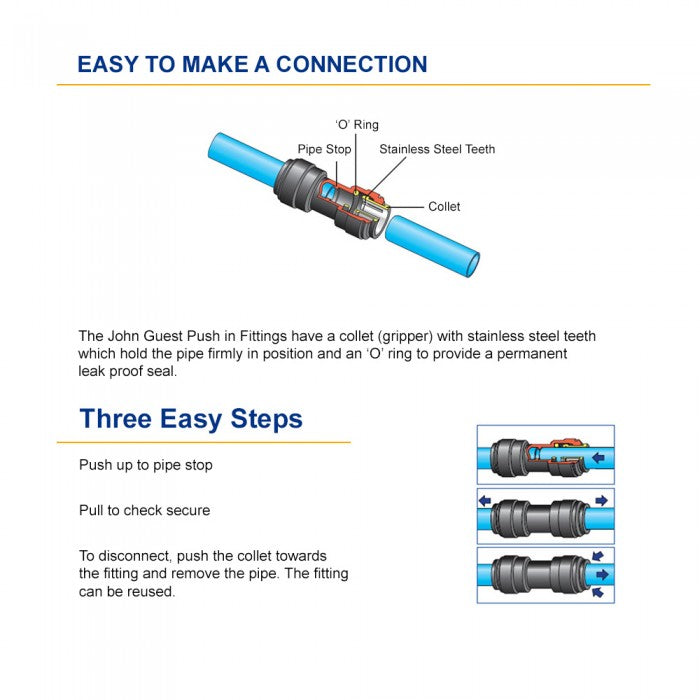

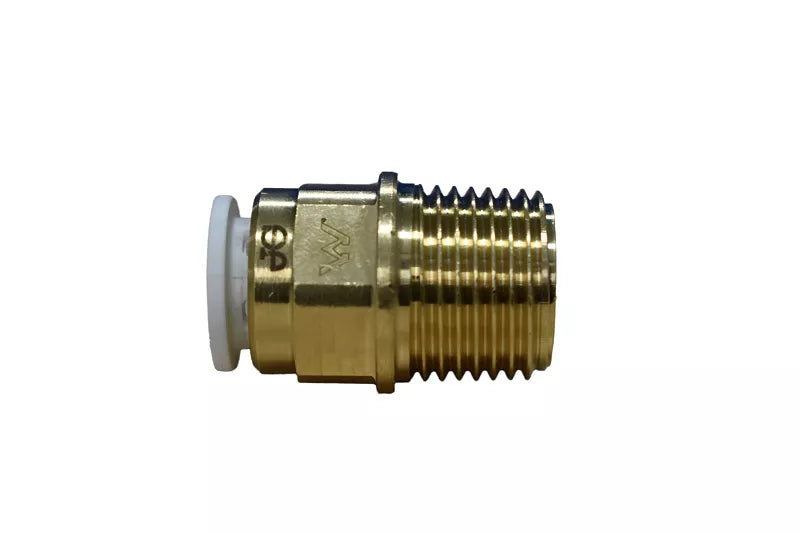

Push-fit brass fitting for the connection of plastic and copper pipe. Designed, manufactured and assembled in the UK by John Guest Speedfit. Simply push the fitting fully onto the pipe and twist the plastic nut clockwise to lock in place. Should the need arise to demount the connection unlock the nut and push the collet towards the body of the fitting and pull the pipe to release.

The fitting ensures an easier working environment in confined places and removes the need for hot works on site. Installation can be reduced by around 40% against traditional fixing methods.

Note: With all plastic pipes the relevant manufacturer’s pipe insert is required.

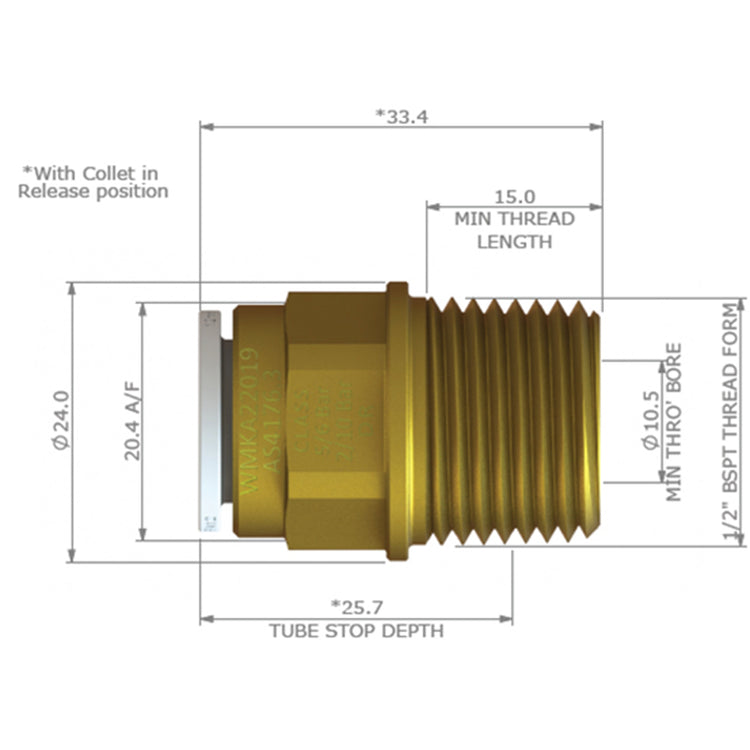

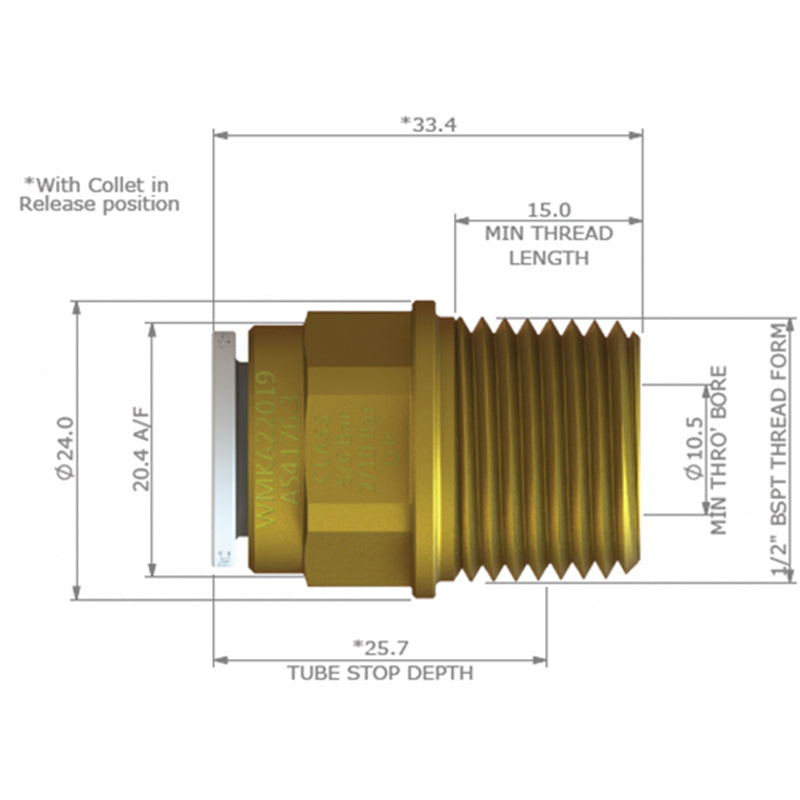

• 1/2 inch Male BSP thread

• 12mm push-in fitting to suit blue, red or black 12mm John Guest (or similar) pipe

• Max tightening torque 3.0Nm

• Watermark certified

NC2771
