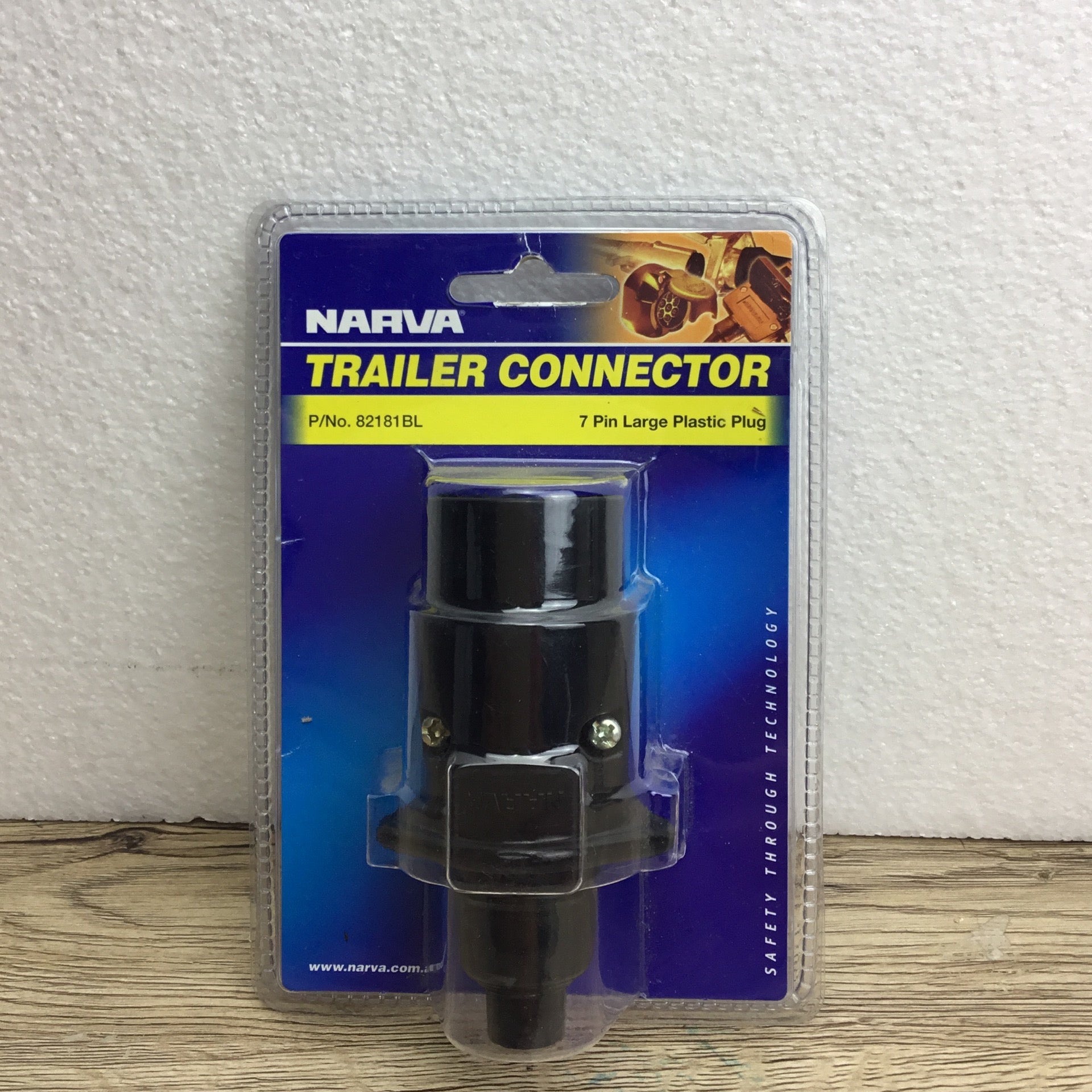

NARVA 7 Pin Large Round Plastic Trailer Plug

Regular price
$14.00
Sale price
$14.00

    Product Details

    These connectors are made by a number of manufactures, but all will fit into each brand provided the style is the same.


    --

    WIRING DIAGRAM:

    PIN 1 - Left Indicator - Yellow
    PIN 2 - Reverse - Black
    PIN 3 - Earth - White
    PIN 4 - Right Indicator - Green
    PIN 5 - Electric Brakes - Blue
    PIN 6 - Stop Light - Red
    PIN 7 - Tail/No Plate - Brown
