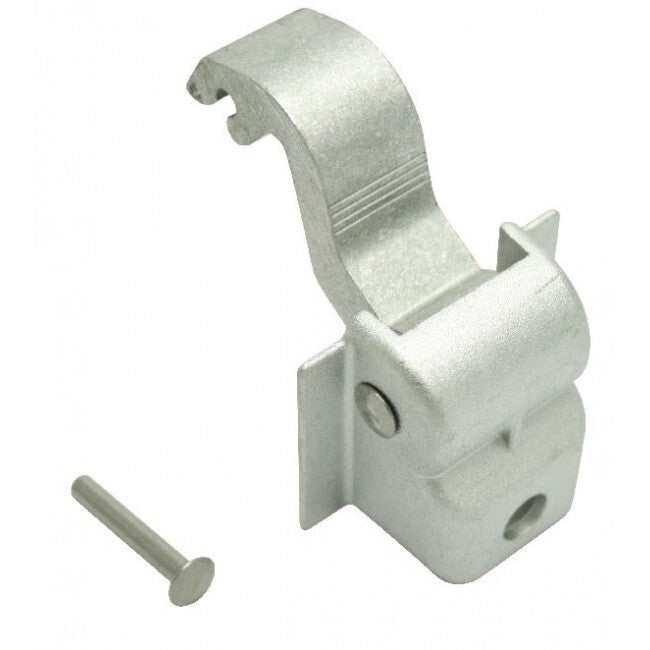

Dometic Slider Assembly with Rivet

This kit will suit all Dometic / Electrolux A&E 8300, 8500 and 9000 awnings.
The spare parts diagram shows the location within the hardware kit (arms).
The style has changed a small amount over the years, however the dimensions are the same.

The rivet is solid except for a hollow section at one end. The rivet is passed through the holes and expanded by using a centre punch (hand tool similar to nail punch - but with a pointed end). If installing in situ a solid mass (eg. brick) is required behind the rivet head. The final expansion of rivet is achieved with the hammer head.
