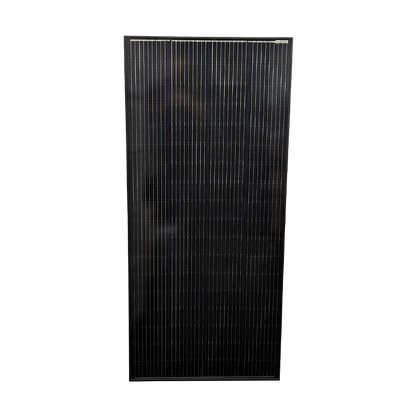

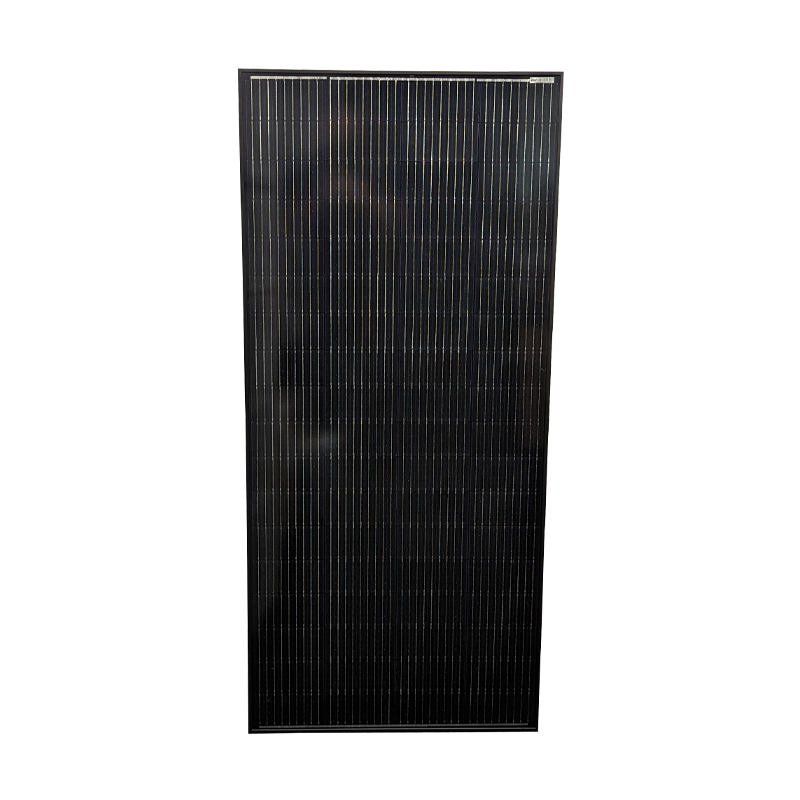

Sphere 210w -Mono Crystalline -Twin Cell Technology BLACK Solar Panel - 670x1480x35mm

Featuring the latest in solar technology, the Sphere Monocrystalline Solar Panels with Twin Cell Technology have been researched and designed in Australia to solve the common issue of partial shading which affects caravan and RV solar power applications.

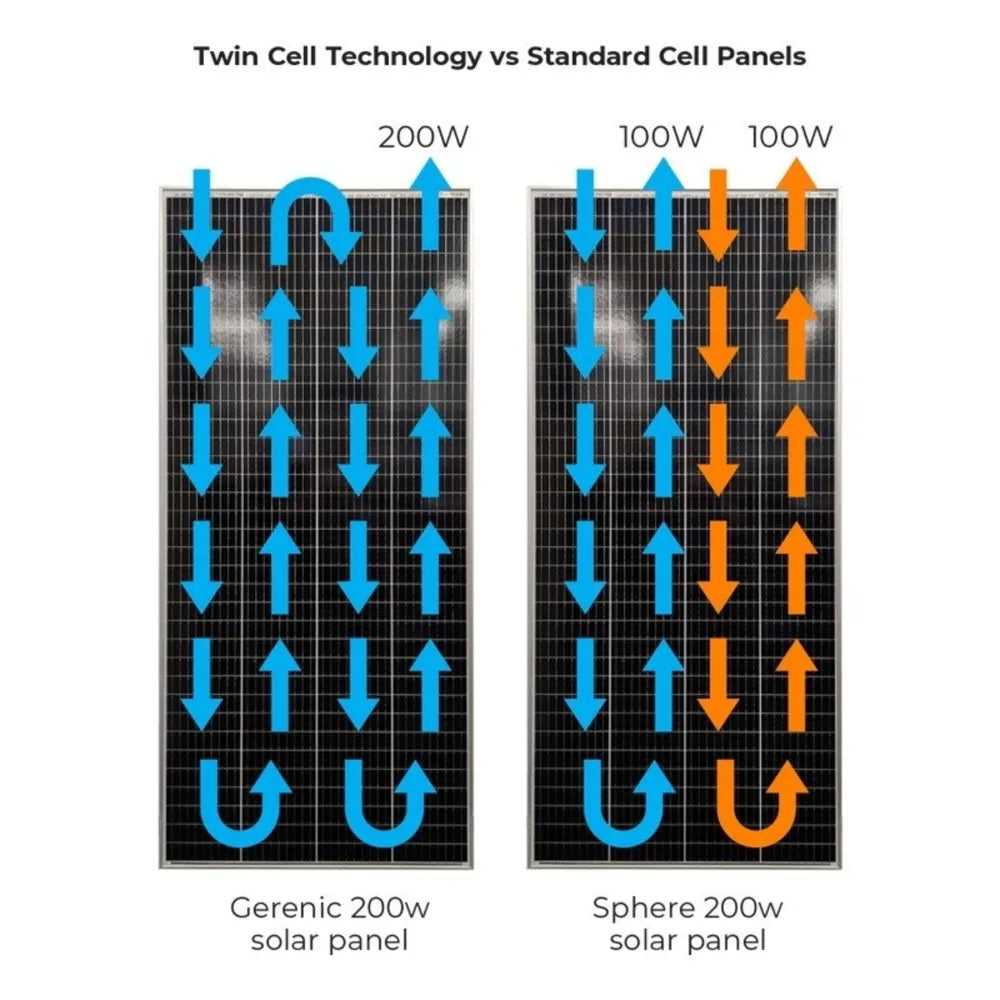

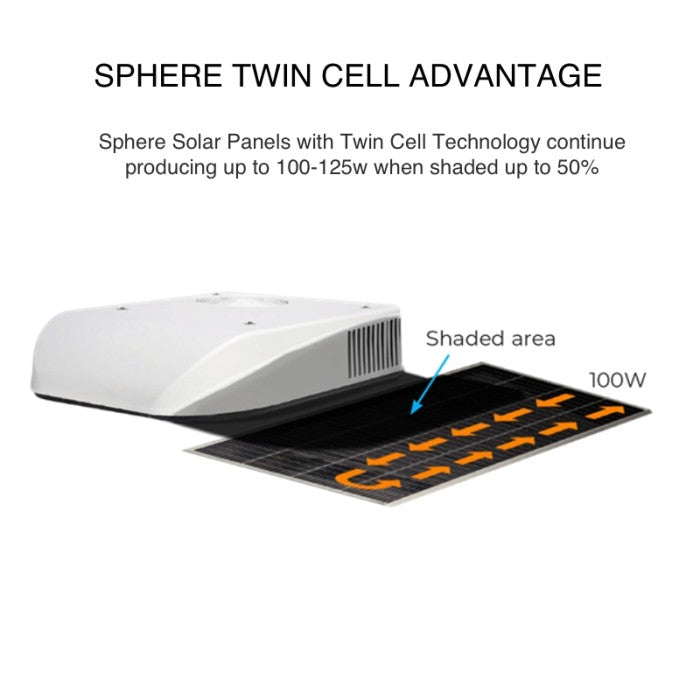

While partial shading caused by roof mounted accessories such as antennas, air conditioners and roof vents can drastically reduce the overall output on standard solar panels, Sphere's innovative Twin Cell design allows a single panel to operate as if it were two independent smaller panels.

This unique parallel design means even if one side of the panel is shaded, the other side can still perform at full capacity, whereas in a traditional solar panel this would cause a severe bottleneck.

• Twin Cell Technology - reduces impact of partial shading for improved performance
• Improved Cell Efficiency - enables 210W from a 180W footprint
• Anodised Aluminium Frame - resists rust and has pre-drilled mounting holes
• Bypass diodes - further minimises power drops caused by shade
• Antireflective, high transparency tempered glass for durability
• IP65-rated junction box
• 5 year warranty.

• Frame: Black Anodised Aluminium Alloy
• Peak Power Output: 210 W
• Power Output Tolerance: 3%
• Maximum Power Voltage: 20.6 V
• Maximum Power Current: 9.71 A
• Short Circuit Current: 9.85 A
• Open Circuit Voltage: 24.1 V
• Maximum System Voltage: 1000 V DC
• Junction Box Type: 0.9 m, 4 mm² solar cable fitted with MC4, IP65
• Number of Cells: 72 (4 x 18)
• Panel Dimensions: 670 x 1480 x 35 mm
• Net Weight: 11 kg
• Shipping Weight: 11.00 Kgs.
• Shipping Dimensions: 150 cm x 70 cm x 7 cm.
