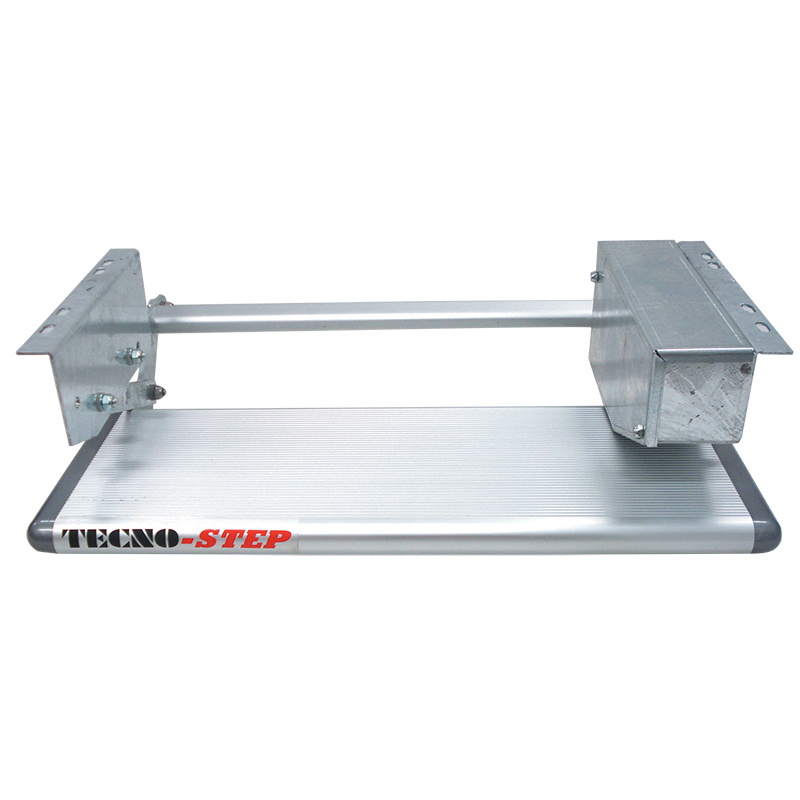

Nuova Mapa 12V Electric Single Caravan Step - LIMITED STOCK

Please ring for a freight cost as this is a custom freight item.

Description

The Tecno Step is a fantastic addition to your caravan or motorhome!

These single steps have an aluminium tread and the frame is all galvanised steel construction. They have a 12V motor that extends and stores the step. It is operated by a switch that is usually placed just inside the doorway.

NOTE: Wiring harness with switch is not included but can be purchased separately by using the link below in related products.

The mounting brackets can be bolted (bolts not included) or welded to the chassis and are 554 mm from outside to outside. See enlargements for clearer dimensions.

Features

• Electric switch NOT INCLUDED. Please see wiring harness in related products below
• You cannot ride on the step when it is operating
• 1 year warranty.
• • Brand: Tecno - Nuova Mapa
  • Clearance required: 170 mm deep when closed
  • Closed step is 50 mm proud of mounting flange
  • Open step is 300 mm proud of mounting flange
  • Open step tread is 190 mm below mounting flange
  • Overall width of top mounting frame: 554 mm
  • Overall tread size: 575 mm x 220 mm
