Suburban SW6DERA Hot Water System - 20.3 Litre - Gas/240V - Black Door - SUPPLY AND FIT

(Supply and Fit) subject to seeing the caravan Please speak to our sales team on 0249549996 for the latest availability of this product before purchasing.

This is an approximate estimate due to a certified gas fitter possibly being needed.

SW6DERA is the direct WaterMark-approved replacement for the SW6DEA and was designed with the same external dimensions and mounting pattern so it will fit in the same location without caravan modifications. The replacement shares the same 325 mm × 325 mm cut-out, depth and mounting screw pattern.

Description

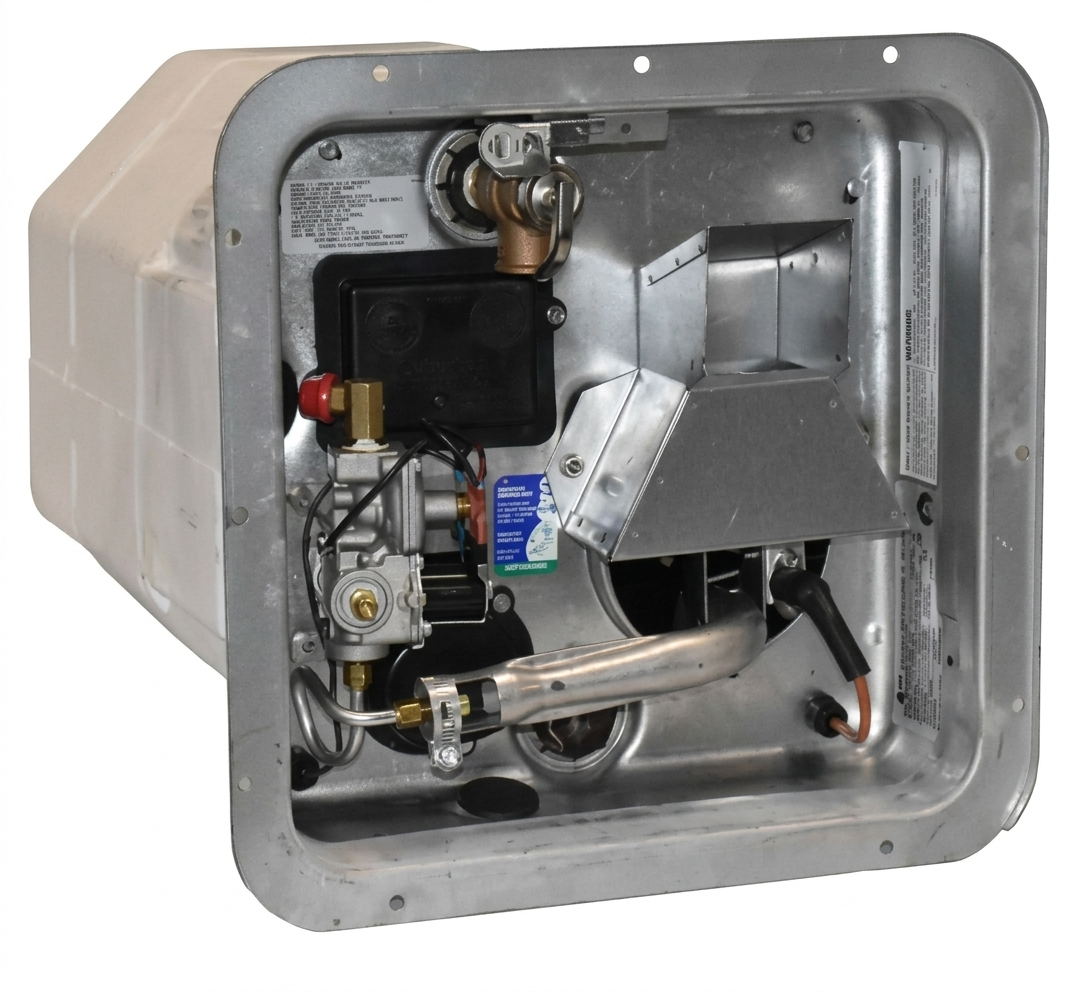

This Suburban is a gas/electric water heater and has been WaterMark certified for the Australian market.

The Suburban range of water heaters include gas, 240V and gas/electric models and offer manual or 12V ignition. Manufactured in the USA featuring a steel tank with porcelain lining for an extended life and copolymer insulation jacket for superior heat retention.

These hot water systems fit under a seat or in the back of a cupboard, with a door and access from the outside of the RV.

Features

• All Suburban RV hot water systems have a porcelain-lined, high tensile steel tank which is pressure tested twice for assurance of tank integrity and a long life.
• All Suburban RV hot water systems have an anode rod which absorbs the corrosive action of hot water. It is located on the bottom of the HWS under the main burner; you simply unscrew this to drain the tank of water. If the rod is mostly eaten away, replace it with a new one.
• Easy access, foam tank insulation and high recovery rate.
• Direct spark ignition for gas and an electric element.
• The switch is included.
• Spare parts are available.
• 2 year warranty.

Specifications

• Replaces Suburban SW6DEA
• Capacity: 20.3 L
• Heating source: Universal gas or 240 V
• Ignition type: 12 V
• Recovery: 40 L/hr (45 °C rise)
• Dimensions (mm): (H) 320 x (W) 320 x (D) 500 (plus pipe connections at rear)

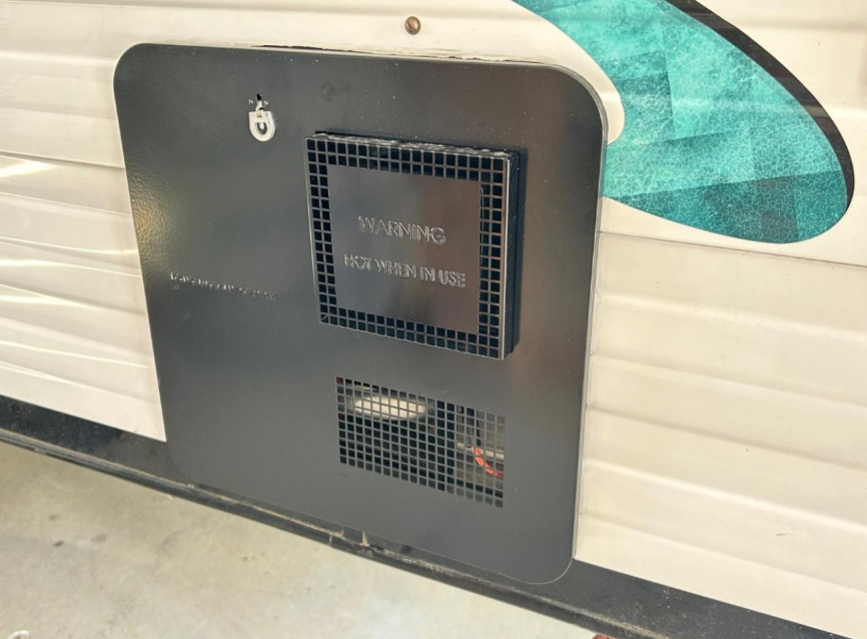

• Includes black door - overall dimensions 380 mm x 380 mm
• 240 V - 50 Hz AC, 1,440 W - 6 A
• Pressure relief valve: 700 kPa
• WaterMark certified
• Gas inlet: 3/8 inch SAE
• Gas consumption: 8.7 MJ/h
• Cold water inlet: 1/2 inch female BSP
• Hot water outlet: 1/2 inch female BSP
• Anode thread: 3/4 inch female NPT
